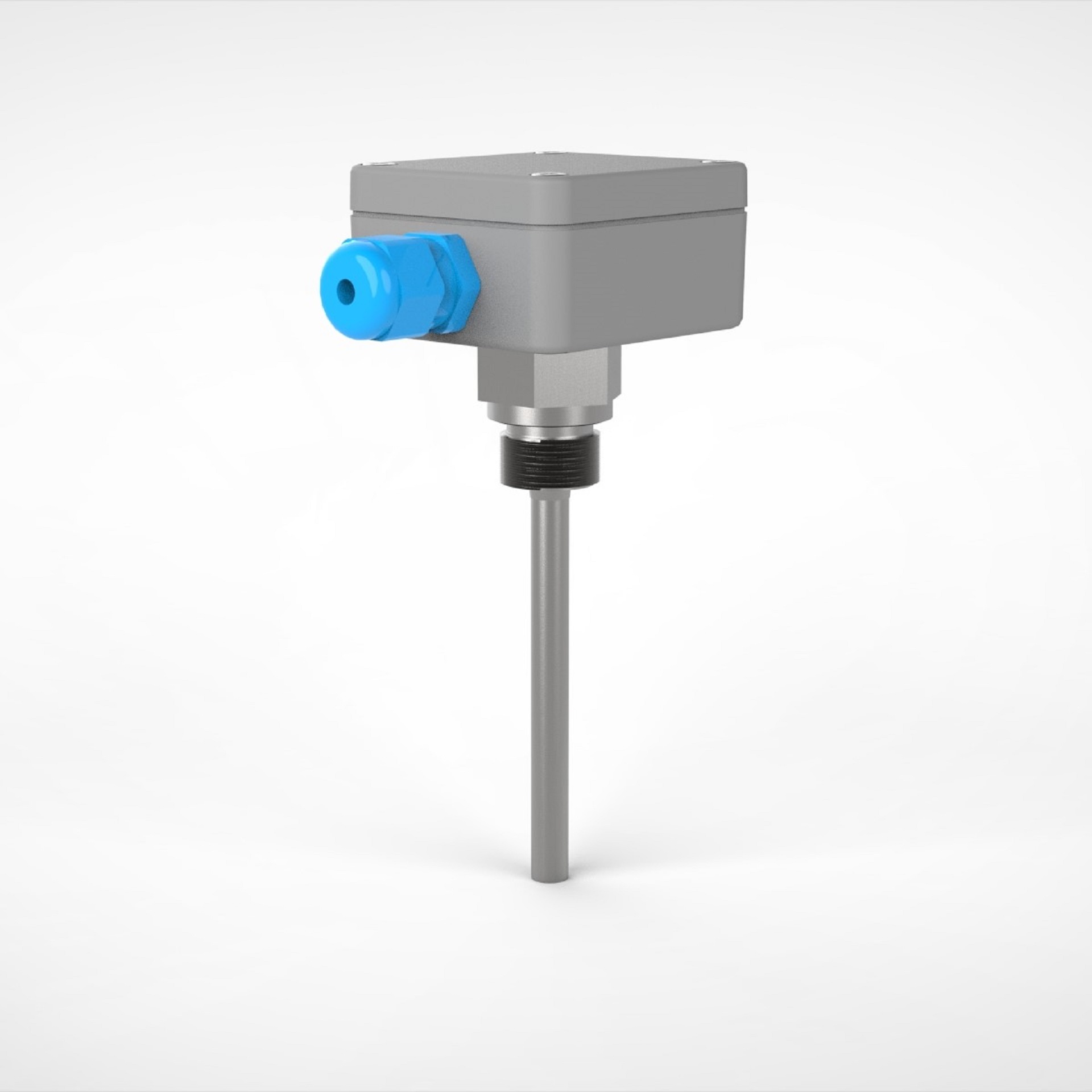

UniEx.T
Temperature switch/ temperature sensor with ATEX approval
The UniEx.T temperature sensor with ATEX approval offers precise temperature monitoring for many applications, e.g. in vehicle manufacturing. Installation via screw connection or flange, various connections possible
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Terminals in the housing, plug connection M12x1 4-, 5-, 6-, 8-pole, 3-pole + PE DIN EN 175301-803, cable |
|
Mounting: |
Screw connection 1 ½“, 2”, ½“, 3/8”, ¼“, 1”, M20x1.5, flange AD74 LK60, stainless steel material |
|
Sliding tube: |
Ø8mm, Ø12mm, stainless steel material, length selectable |
| Temperature sensor: | Platinum measuring resistor PT100 or PT1000 in 2-, 3-, 4-wire according to DIN EN 60751 class B |
| Temperature switch: | NO/NC/NO contact |
| Operating temperature: | -20°C to 105°C |
| Typical Industries: | Chemical industry, Oil & Gas industry, Mining & Mineral processing, Pharmaceutical industry, Hydraulic power units, Machinery & Plant engineering |
Safety instructions
ICON SICHERHEITSHINWEISE FEHLT
The level gauge may only be operated on certified intrinsically safe circuits with the permissible maximum values - ignition protection type Ex i.
The device must be included in the recurring pressure/safety test of the vessel.
The level gauge must be conductively connected to the system's equipotential bonding system.
Our Uni.Ex series devices may only be operated in conjunction with an Ex barrier/switching amplifier.
