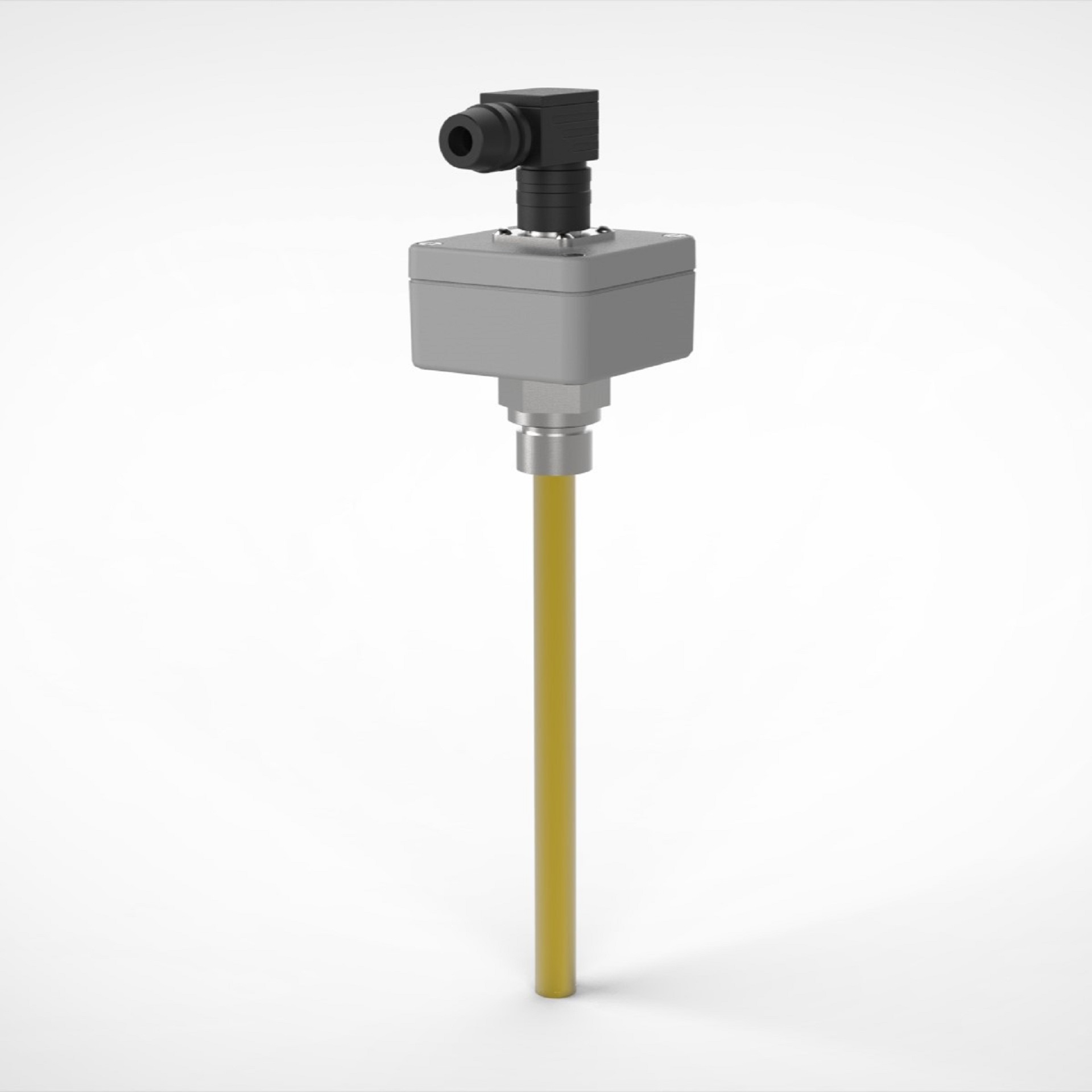

PT100-10L
Temperature sensor with integrated transmitter
The PT100-10L temperature sensor offers precise temperature measurement for many applications, e.g. in the chemical industry. Installation via screw connection, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M16 2-pin plug connection, nickel-plated brass material |
|
Mounting: |
Screw connection ½", material aluminum |
|
Sensor tube: |
Ø12mm material brass, stainless steel, length selectable |
|
Temperature sensor: |
Platinum measuring resistance PT100 in 2-wire technology |
|
Output: |
0...1V at 0 to 100°C |
| Operating temperature: | -20°C to 100°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
