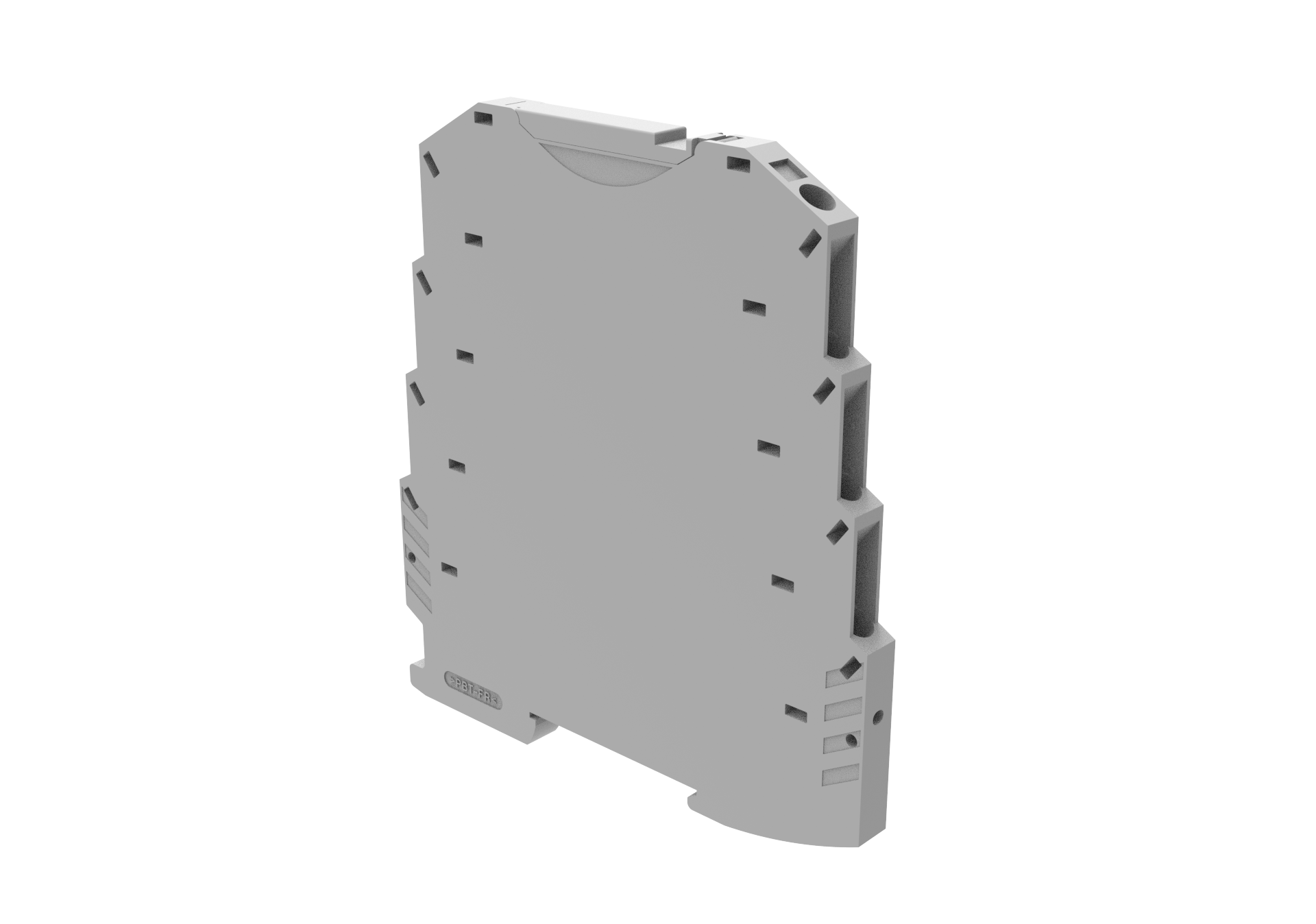

SAP UNI
Measuring transducer 3-wire in current 4...20mA
The SAP UNI external measuring transducer is used to record, evaluate and convert temperature or level signals in technical systems.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Housing: |
6.2x102.5x93.1mm, material PBT, for 35mm mounting rail |
|
Input: |
Resistor input 3-wire technology, level or temperature, approx. 100 - 1500 Ohm, linearizable for platinum temperature sensors |
|
Output: |
4 ... 20mA, scaling is carried out in-house according to customer requirements |
| Power supply: | 24VDC ± 15% reverse polarity protected |
| Operating current: | <30mA |
| Operating temperature: | -40°C to 100°C |
| Typical industries: | Mechanical and plant engineering, offshore industry, Chemical Industry, food industry |
