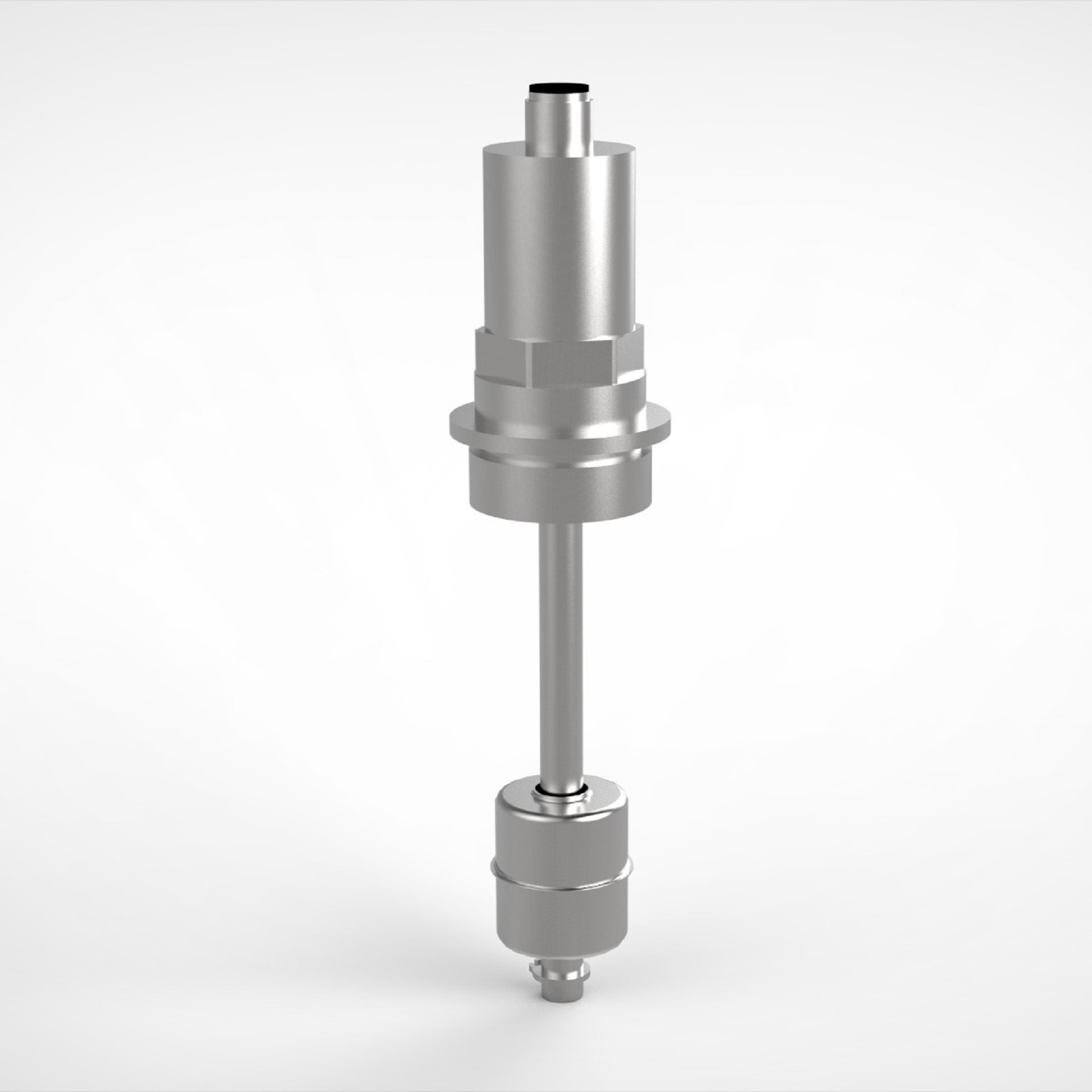

AST 55
Analog level and temperature measurement
The AST-55 combination device offers precise level monitoring for many applications, e.g. in cooling systems. Installation via screw connection, connection via plug connection
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12x1 4-pin plug connection |
|
Mounting: |
Screw connection ½", 1", ¾", 1 ¼", 1 ½", M20x1.5, M22x1.5,M24x1.5, flange 80x50mm, material aluminum, PA, stainless steel |
|
Sliding tube: |
Ø8mm,Ø12mm, material brass, stainless steel, length selectable |
|
Float: |
Material PP, NBR, stainless steel; see data sheet for details |
|
Resolution: |
2.5mm, 5mm, 10mm reed chain |
|
Output signal level: |
0...10V or 4...20mA |
| Temperature output signal: | 0...10V or 4...20mA at 0°C to 100°C |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
