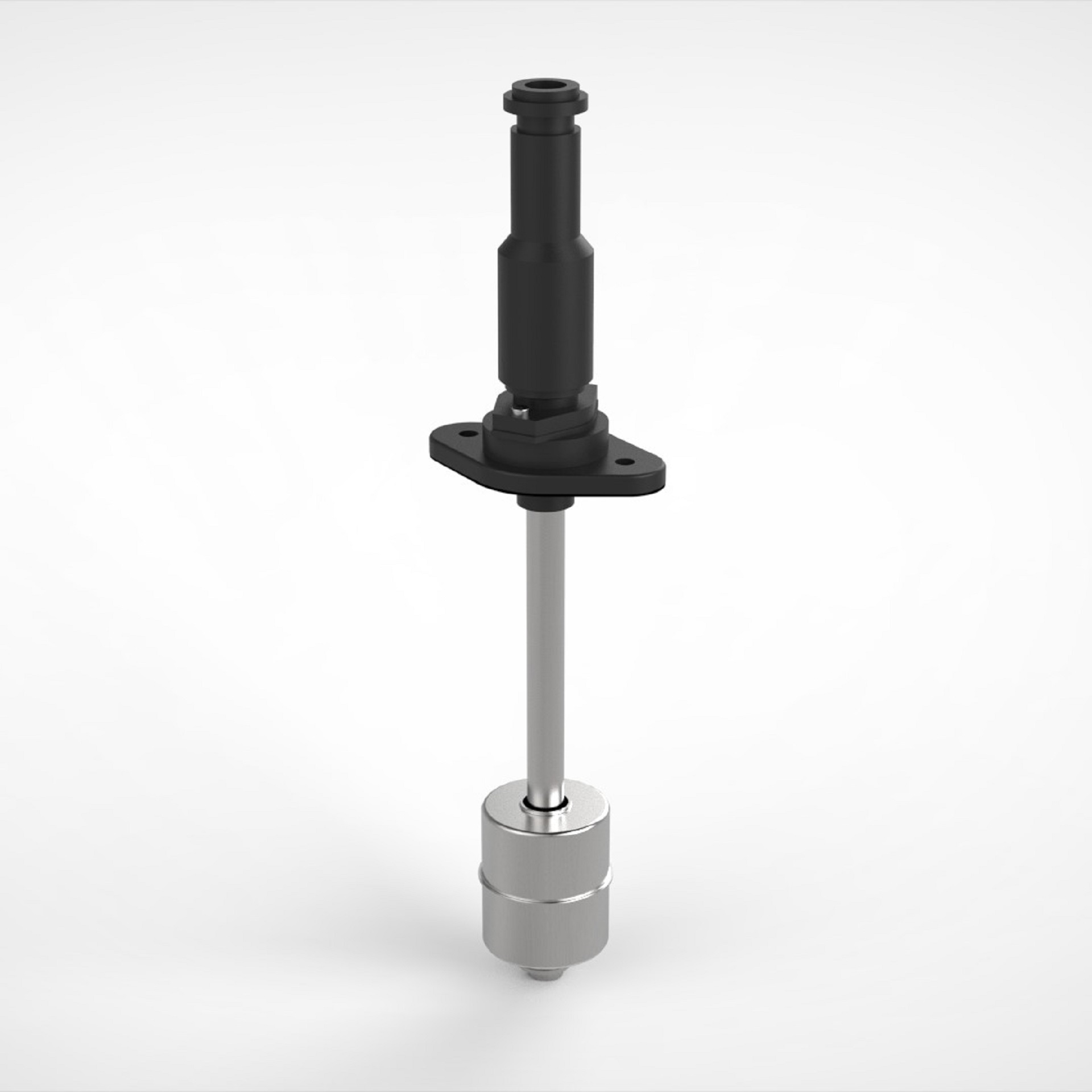

SSE 10 T
Float switch with temperature switch
The float switch version 10 offers precise level monitoring for many applications, e.g. in drinking water treatment. Mounting via flange, electrical connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
7-pin plug connection + PE (DIN EN 175201-804(DIN 43651)) |
|
Mounting: |
Oval flange 80x50mm, material PA |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 3x NO/NC/NO contact or changeover contact |
|
Switching capacity: |
230VAC/1A/60VA |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
