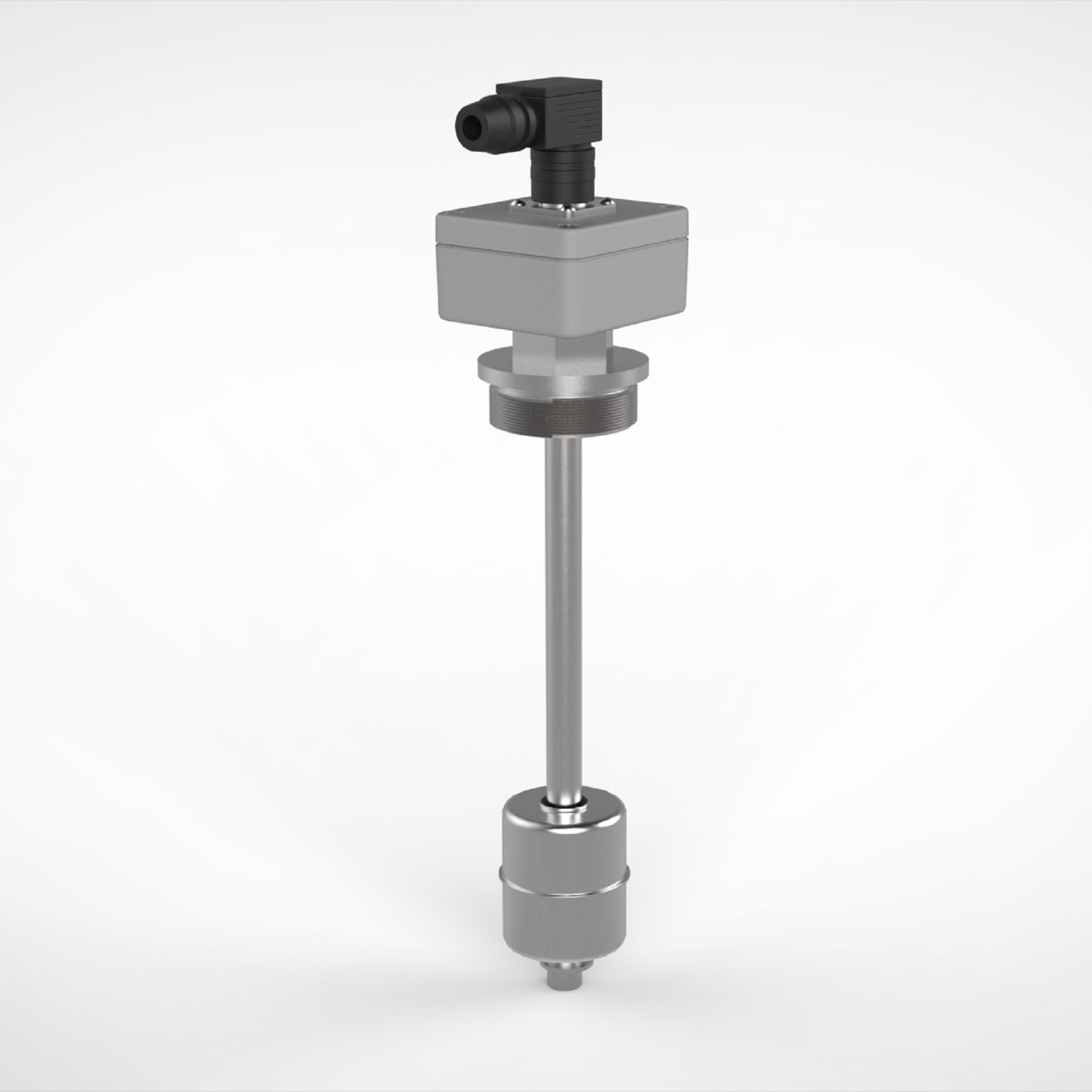

AST 12
Analog level and temperature measurement
The AST-12 combination device offers precise level monitoring for many applications such as off-shore. Installation via screw connection, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Plug connection M16 3-pin on aluminum housing 64x58x35mm |
|
Mounting: |
Screw connection 1 ½", stainless steel material |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
Ø45x52mm, stainless steel material |
|
Resolution: |
2.5mm, 5mm reed chain |
|
Output signal level: |
4...20mA |
| Temperature output signal: | 4...20mA at 0°C to 100°C |
| Operating temperature: | -20°C to 110°C |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
