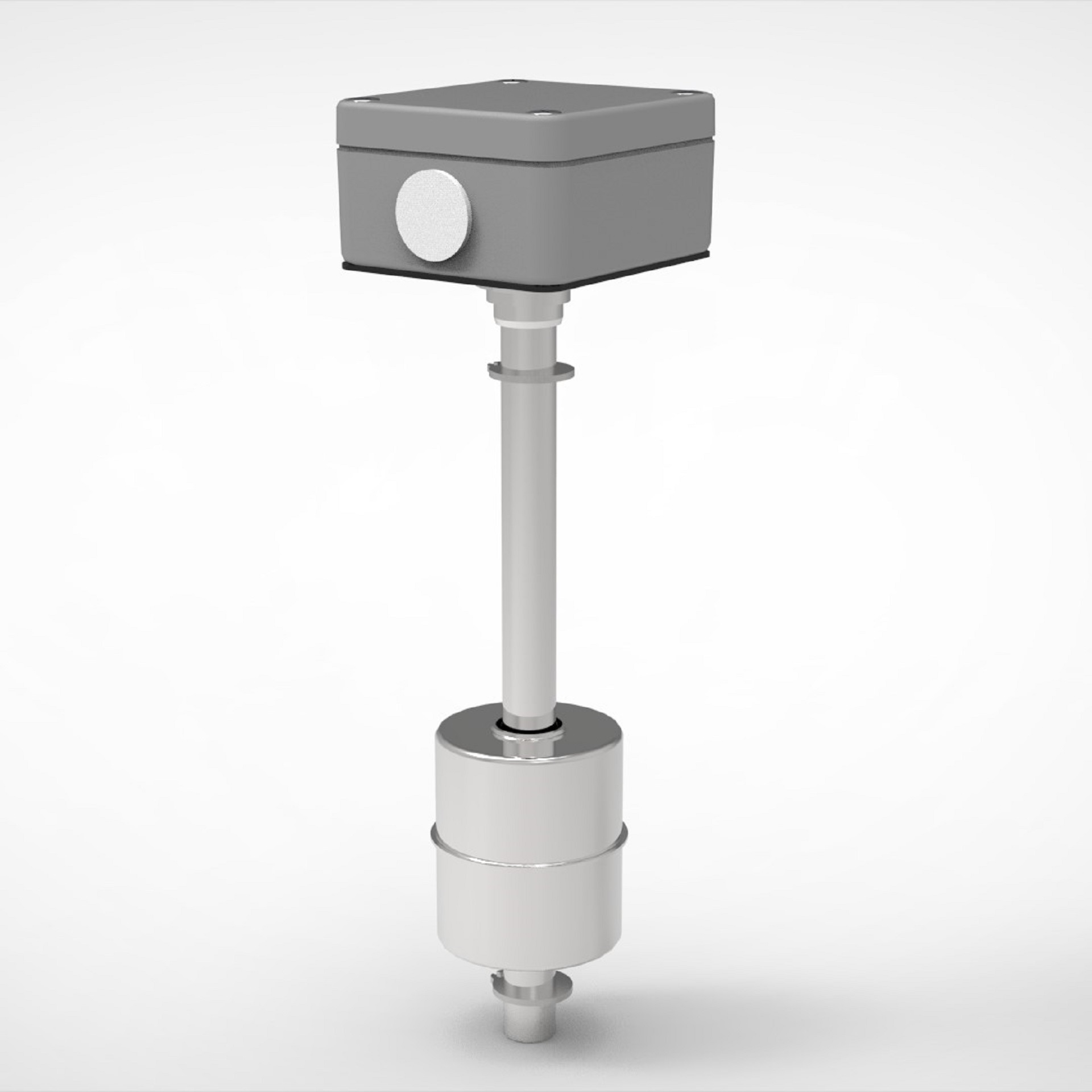

SSE 18 T
Float switch with cable adjustment in combination with temperature switch
The float switch version 18 offers precise level monitoring for many applications, e.g. in shipbuilding. Installation via the housing base, terminal connection in the housing.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Terminal connection in the housing |
|
Mounting: |
via housing base, aluminum material |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 3x NO/NC/NO contact or changeover contact |
|
Switching capacity: |
230VAC/1A/60VA |
| Contact adjustment: | via PG screw connection in the housing |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
