PAN 1
Analog level and temperature measurement

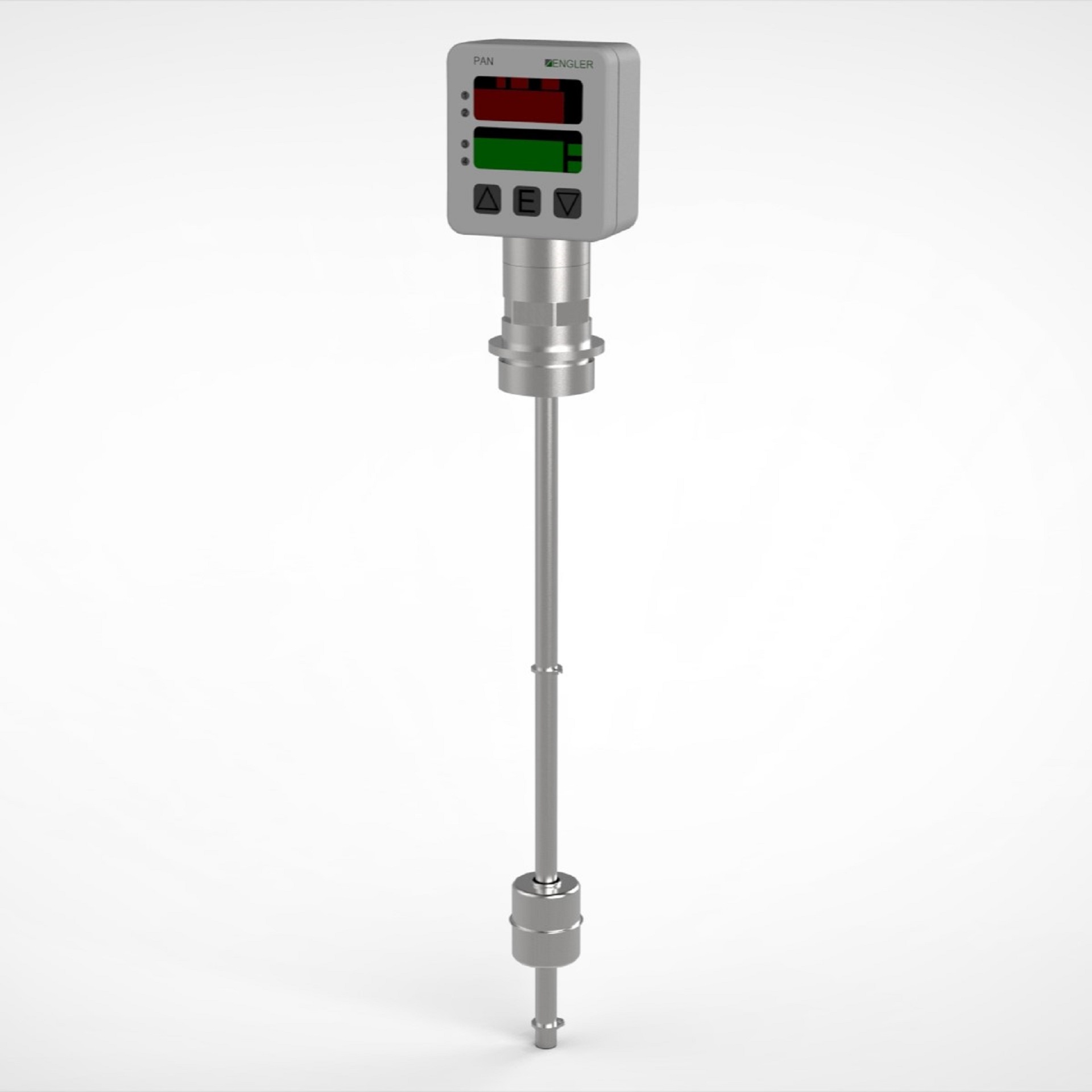

The PAN1-1 combination device offers precise level measurement for many applications, e.g. in shipbuilding. Installation via screw connection, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12x1 8-pin plug connection |
|
Mounting: |
Screw connection ½", ¾", 1 ½", material aluminum |
|
Sliding tube: |
Ø8mm, Ø12mm, stainless steel material, length selectable |
|
Float: |
material PP, NBR, stainless steel; see data sheet for details |
|
Level measurement: |
5mm reed chain |
|
Temperature detection: |
PT1000 according to DIN EN 60751 class B |
| Water detection: | optional |
| Output: | 2 high-side outputs per physical size |
| Operating temperature: | -20°C to 110°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
