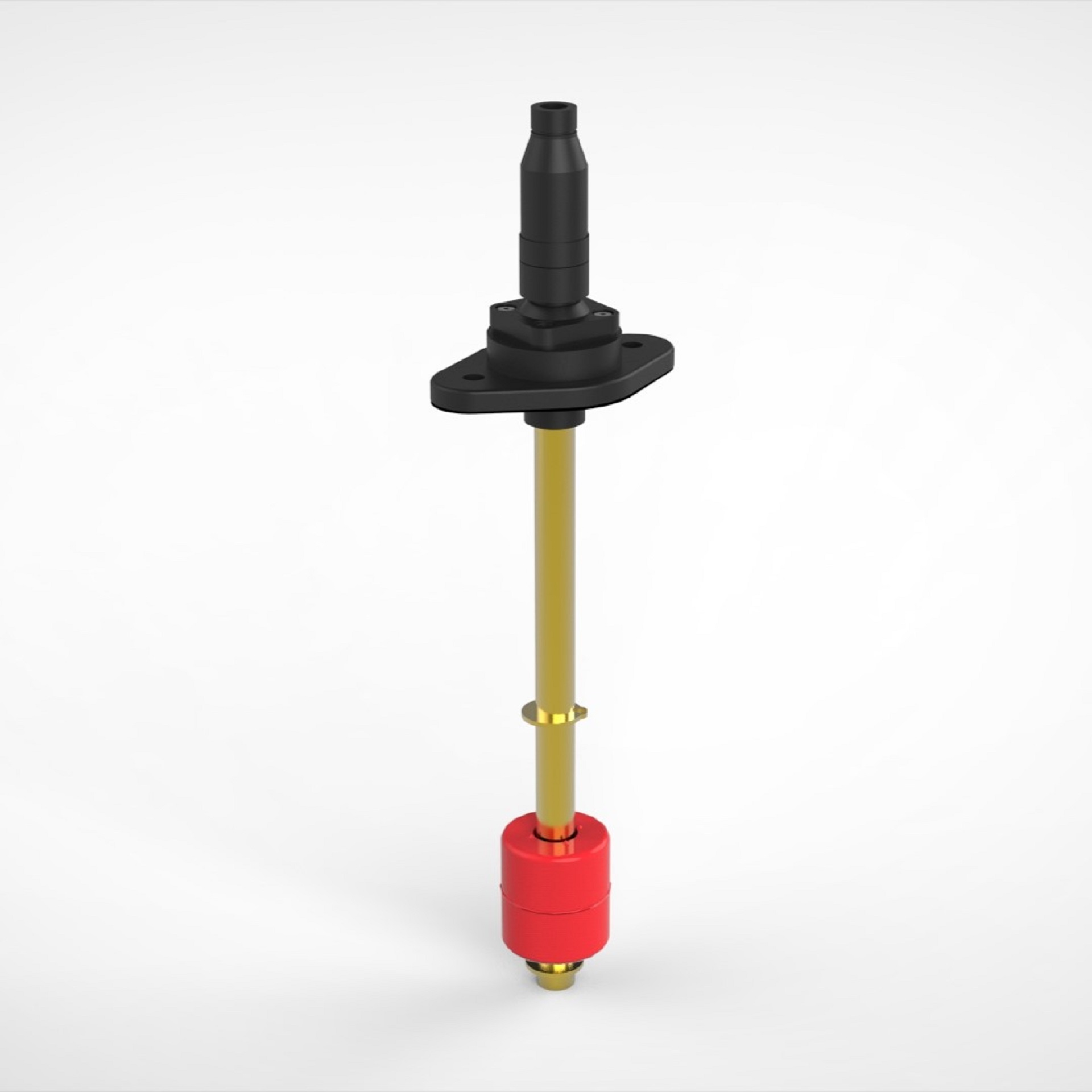

SSM 45 T
Float switch with temperature switch
The 45 version float switch offers precise level monitoring for many applications, e.g. in energy systems. Flange mounting, electrical connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12 x1 4/5-pin plug connection |
|
Mounting: |
Flange oval 80x50mm, material PA |
|
Sliding tube: |
Ø12mm, material brass, length selectable |
|
Float: |
Material stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 2x NO/NC or 1x changeover contact |
|
Switching capacity: |
24VAC/ 150mA |
| Temperature switch: | NC/NC bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
