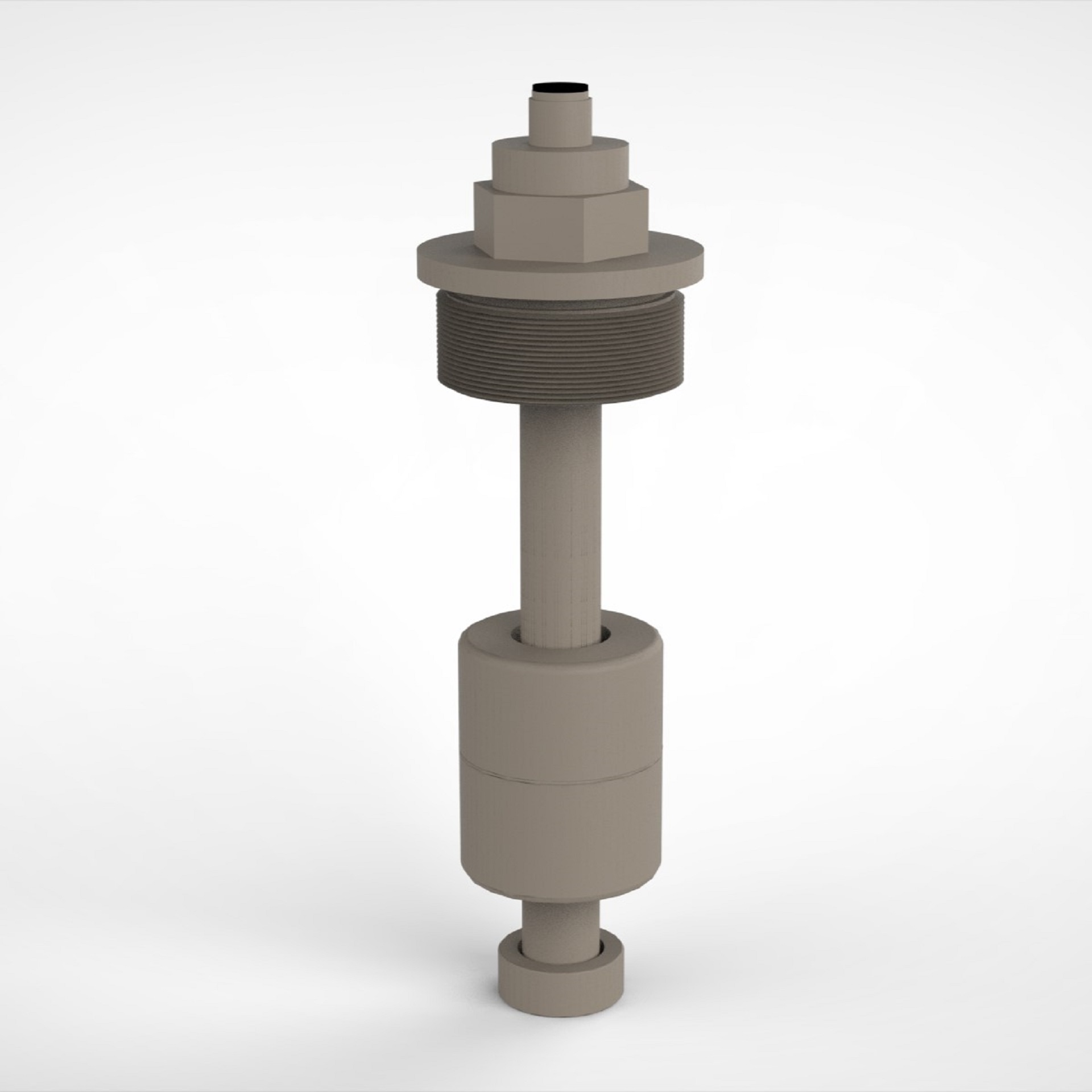

SSE 98 PT100
Float switch with temperature sensor
The version 98 float switch offers precise level measurement for many applications, e.g. in the petrochemical industry. Simple installation via a screw connection, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12x1 4-, 6- or 8-pin plug connection |
|
Mounting: |
Screw connection 1 ½", material PP, PVC, PVDF |
|
Sliding tube: |
Ø12mm, material PP, length selectable |
|
Float: |
material PP, PVC, PVDF; see data sheet for details |
|
Switching points: |
max. 3x NO/NC contact or 2x changeover contact |
|
Switching capacity: |
24VAC/ 150m |
| Temperature switch: | Platinum measuring resistor PT100 DIN 60751; see data sheet for details |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Chemical industry, Dosing & Filling industry, Electro plating |
