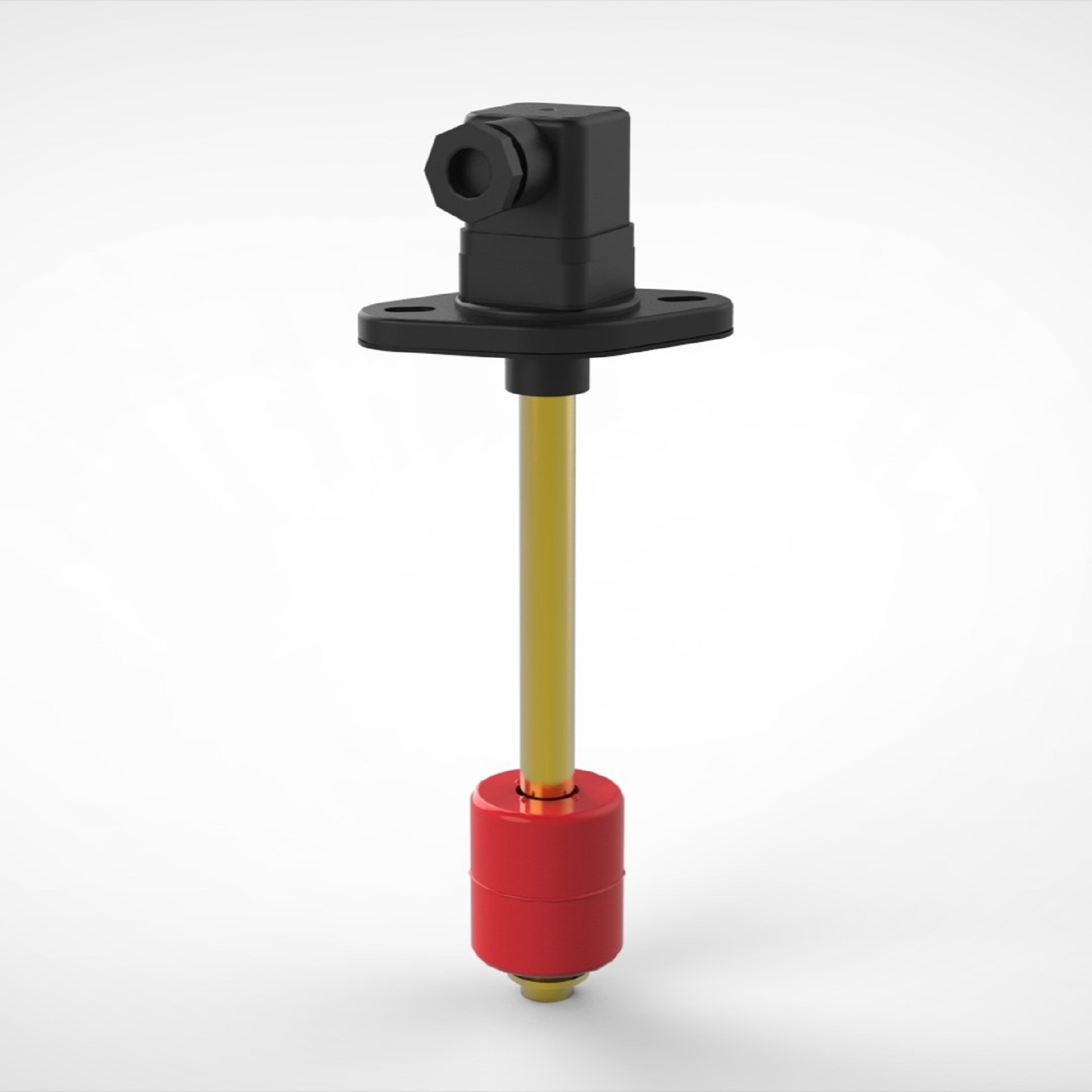

SSM 108 T
Float switch with temperature switch
The float switch version 108 offers precise level measurement for many applications, e.g. in hydraulic oil. Installation via flange Connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
3-pin plug connection DIN EN 175301-803 (DIN 43650) |
|
Mounting: |
Flange oval 80x50mm, material PA |
|
Sliding tube: |
Ø12mm, material brass, length selectable |
|
Float: |
Material stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 2x NO/NC or 1x changeover contact |
|
Switching capacity: |
230VDC/ 1A / 60VA |
| Temperature switch: | NC/NC bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
