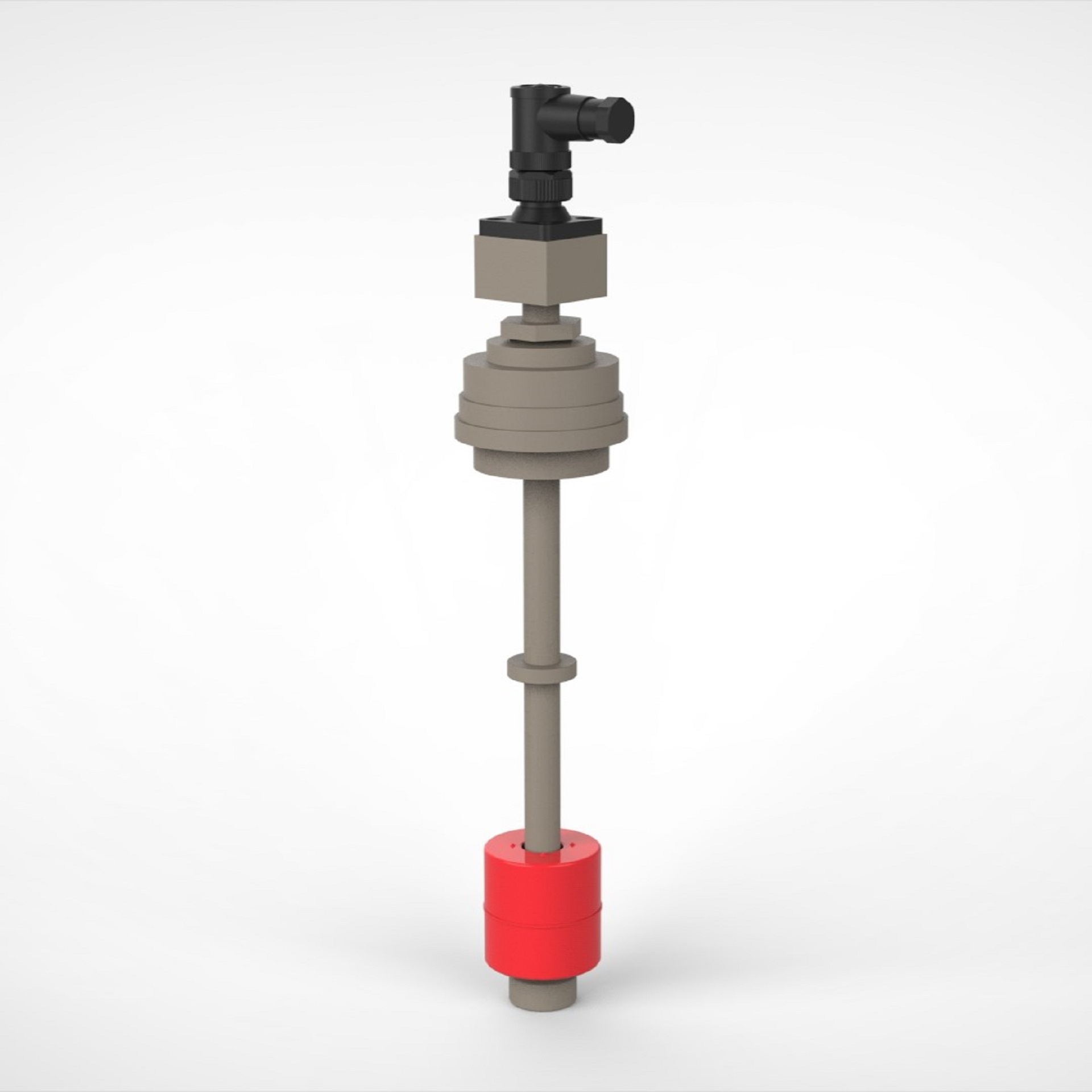

SSP 97 T
Float switch with temperature switch
The version 97 float switch offers precise level measurement for many applications, e.g. in the petrochemical industry. Simple installation via an insert, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12x1 5-pin plug connection |
|
Mounting: |
Insert with depth adjustment, material PP |
|
Sliding tube: |
Ø12mm, material PP, length selectable |
|
Float: |
PP material, Ø40x40mm |
|
Switching points: |
max. 3x NO/NC/NO contact or 2x changeover contact |
|
Switching capacity: |
24VAC/ 150m |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Chemical industry, Dosing & Filling industry, Electro plating |
