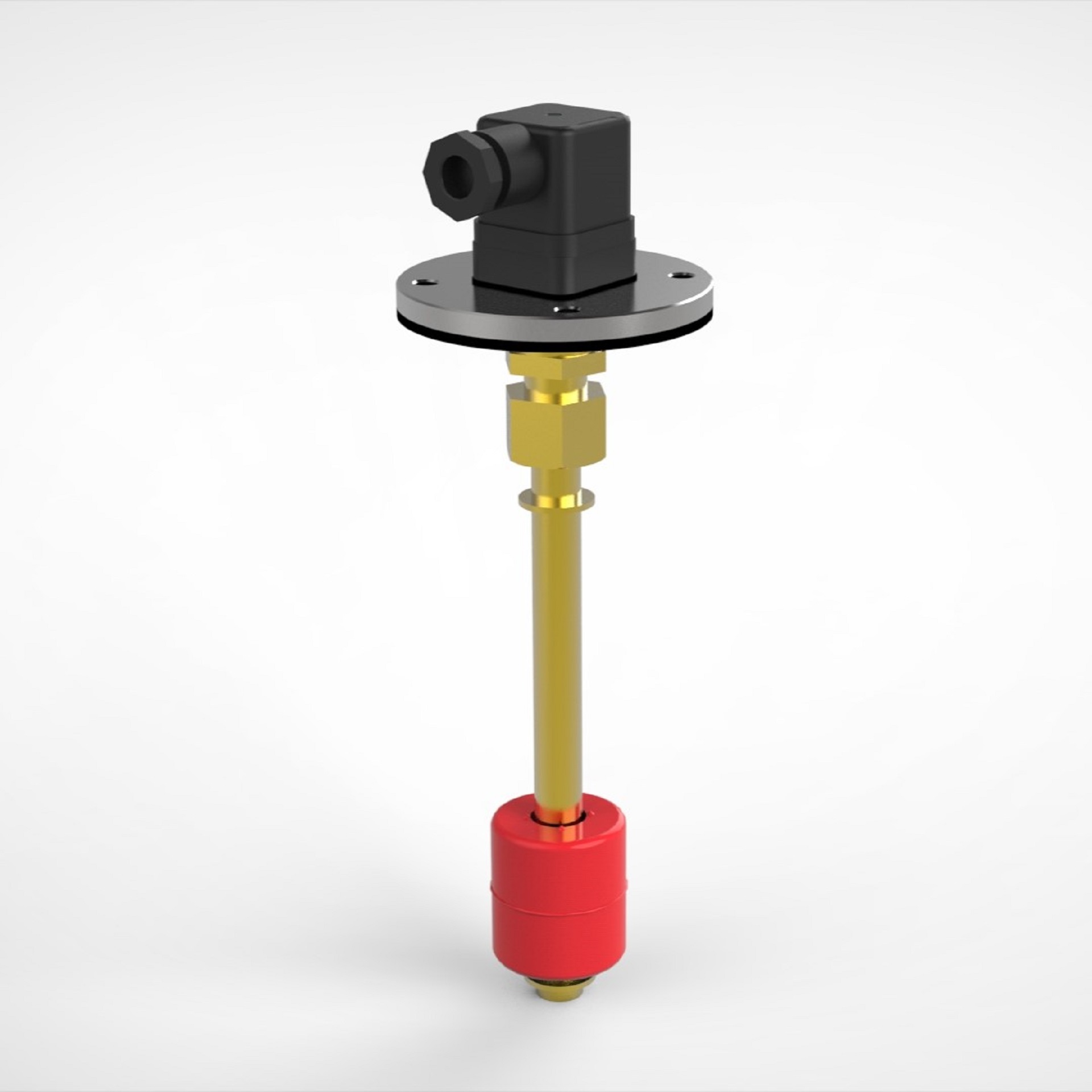

SSM 21 T
Float switch with temperature switch
The float switch version 21 offers precise level measurement for many applications, e.g. in compressors. Simple installation via flange, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
3-pin plug connection + PE DIN EN 175301-803 (DIN 43650) |
|
Mounting: |
Flange round AD74 LK60, material aluminum |
|
Sliding tube: |
Ø12mm, material brass, length selectable |
|
Float: |
Material stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 2x NO/NC or 1x changeover contact |
|
Switching capacity: |
230VAC/ 1A / 60VA |
| Temperature switch: | NC/NC bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
