M60 plug connection 6-pin

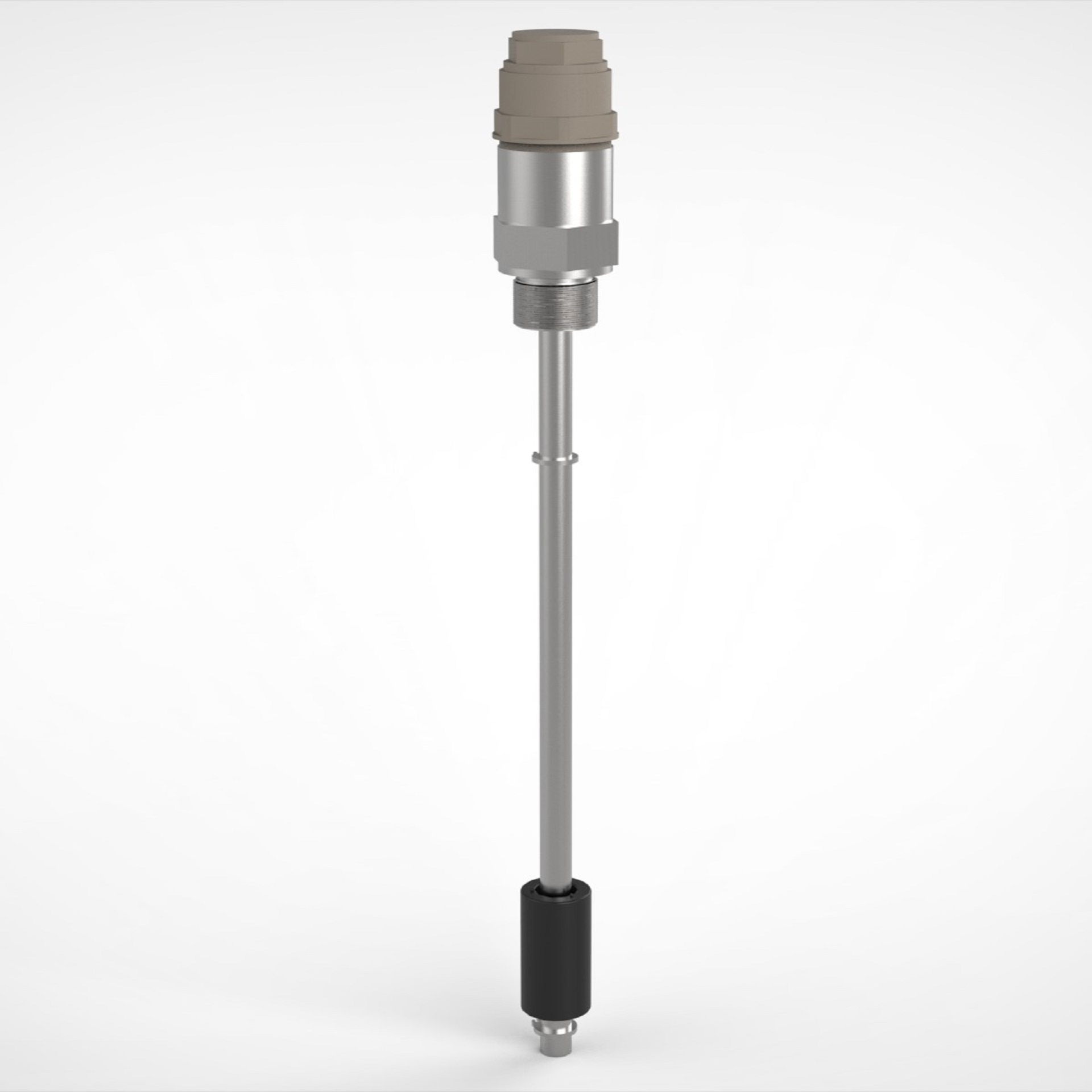

Mini float switch
The mini float switch with 6-pin plug connection offers precise level control for many applications, e.g. in the chemical industry. Installation via screw connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
plug connection 6-pole DIN 43651 |
|
Mounting: |
screw connection 1“, M20x1,5, material alu |
|
Sliding tube: |
Ø8mm, material stainless steel, length selectable |
|
Float: |
material NBR; for details see data sheet |
|
Switching points: |
max. 2x NO/NC contact |
|
Switching capacity: |
230VAC/1A, 24VDC/ 150mA |
| Temperature: | temperature switch / temperature sensor |
| Operating temperature: | -20°C bis 100°C |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
