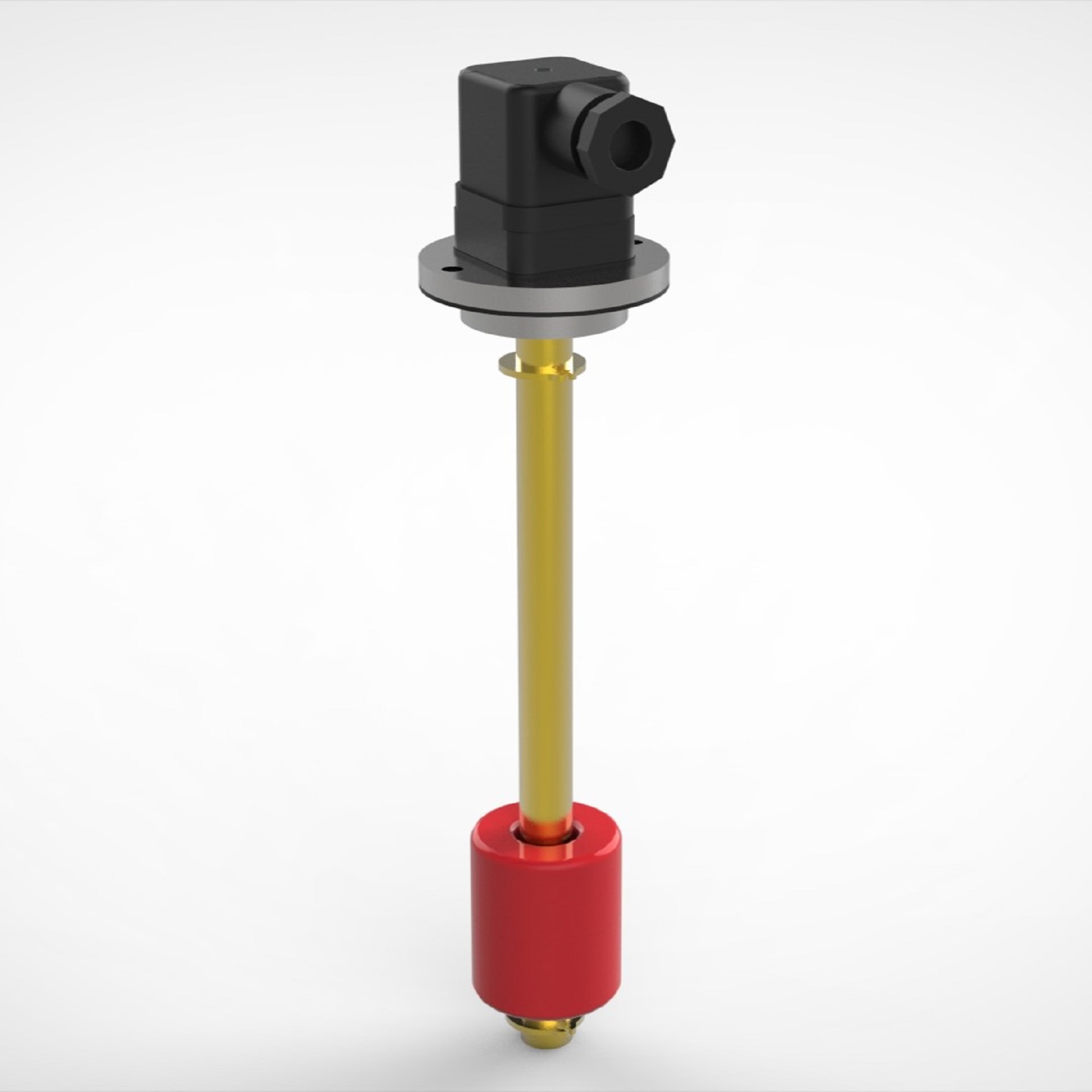

SSM 81 T
Float switch with temperature switch
The float switch version 81 offers precise level control for many applications, e.g. in cooling systems. Simple installation via flange, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
3-pin plug connection DIN EN 175301-803 (DIN 43650) |
|
Mounting: |
Flange round AD52 LK43, material aluminum |
|
Sliding tube: |
Ø12mm, material brass, length selectable |
|
Float: |
PP material, Ø35x40mm |
|
Switching points: |
max. 2x NO/NC or 1x changeover contact |
|
Switching capacity: |
230VDC/ 1A / 60VA |
| Temperature switch: | NC/NC bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
