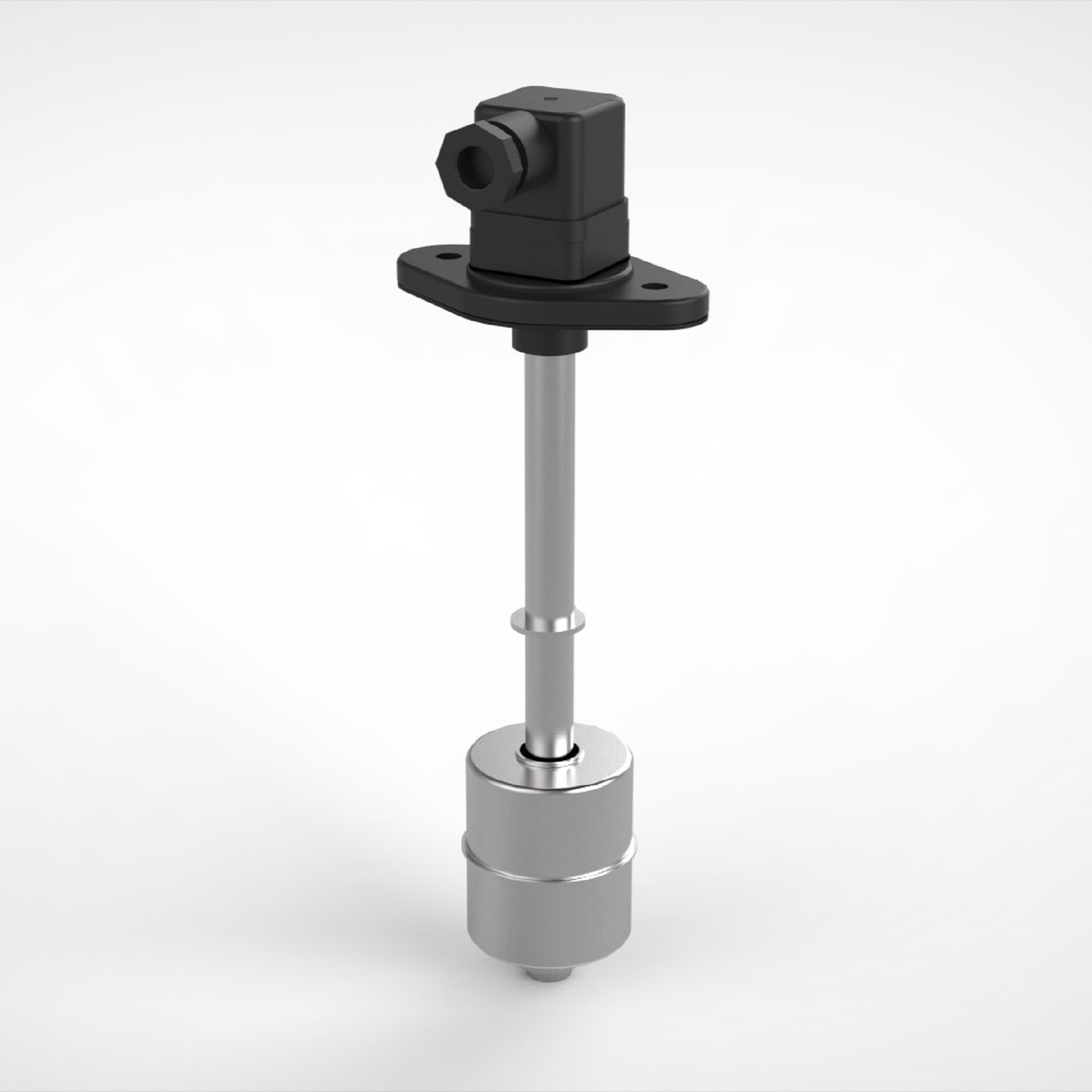

SSE 5 T
Float switch with temperature switch
The float switch version 5 offers precise level measurement for many applications, e.g. in the chemical industry. Installation via flange, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Plug connection 3-pin+PE (DIN EN 175301-803(DIN 43650)) |
|
Mounting: |
Oval flange 80x50mm, material PA |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 2x NO/NC/NO contact or 1x changeover contact |
|
Switching capacity: |
230VAC/1A/60VA |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
