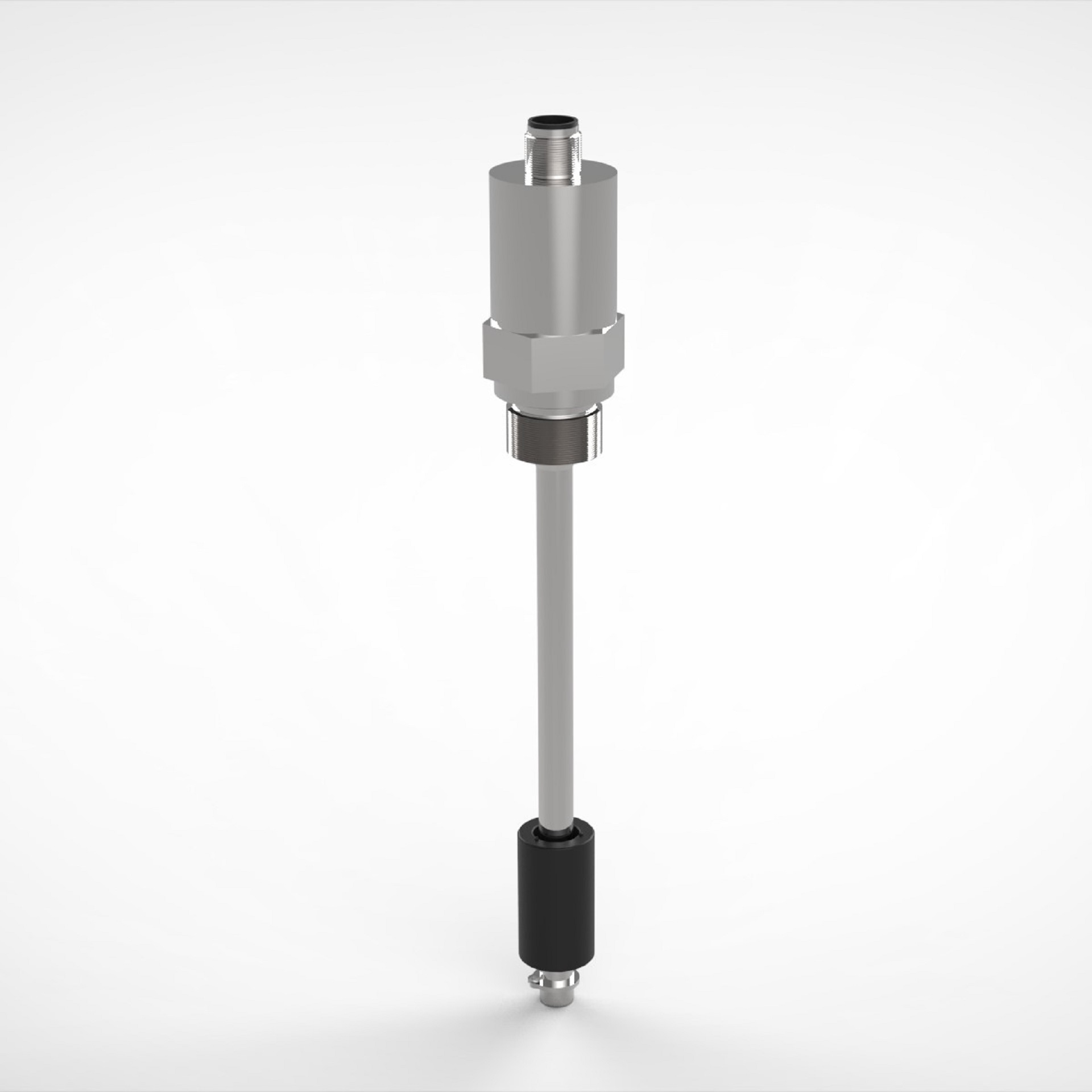

ANM 55 T
Analog level measurement optionally with temperature sensor or switch
The ANM-55 analog level measuring device offers precise level control for many applications, such as in cooling systems. Installation via screw connection or flange, connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
M12x1.5 4-pin plug connection |
|
Mounting: |
Screw connection ½",1",3/4", 1 ¼", 1 ½" 2", M20x1.5,M22x1.5, M24x1.5, oval flange 80x50mm, material stainless steel, aluminum |
|
Sliding tube: |
Ø8mm, Ø12mm, material stainless steel, brass, length selectable |
|
Float: |
Material stainless steel, PP, NBR; see data sheet for details |
|
Resolution: |
2.5mm, 5mm, 10mm pitch |
|
Output: |
0...10V, 4...20mA |
| Temperature sensor: | Platinum measuring resistor PT100 or PT1000 in 2-wire, 3-wire, 4-wire, according to DIN EN 60751 class B |
| Temperature switch: | NC/NO contact |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
