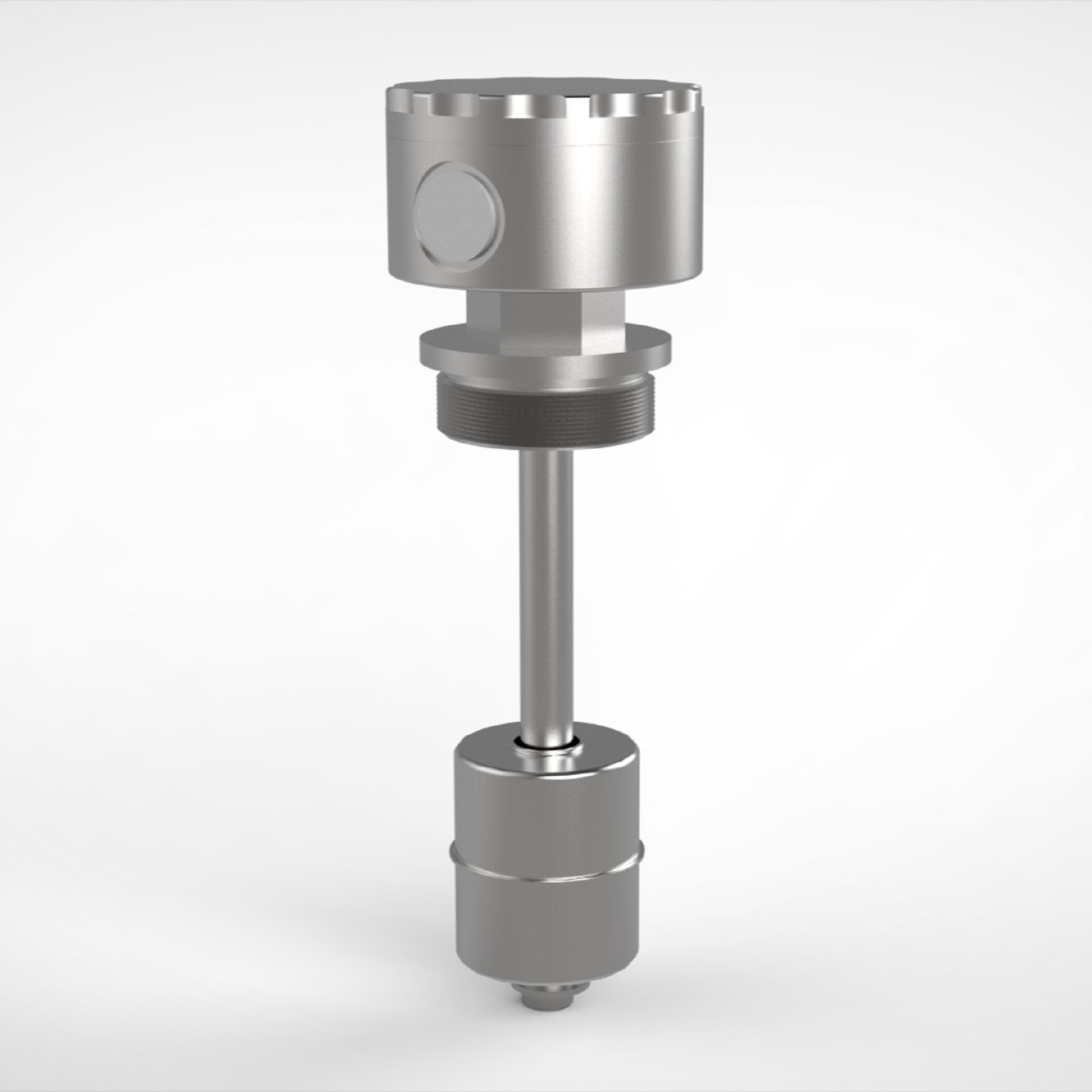

SSE 152 T
Float switch with temperature switch
The float switch version 152 offers precise level control for many applications, e.g. in the petrochemical industry. Simple installation from the inside using a 1 1/2" screw connection, connection via terminals in the housing.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Terminal connection in the housing, stainless steel material |
|
Mounting: |
1 ½" screw connection, stainless steel material |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
Ø45x52mm, stainless steel material |
|
Switching points: |
max. 3x NO/NC/NO contact or changeover contact |
|
Switching capacity: |
230VAC/1A/60VA |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 100°C |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
