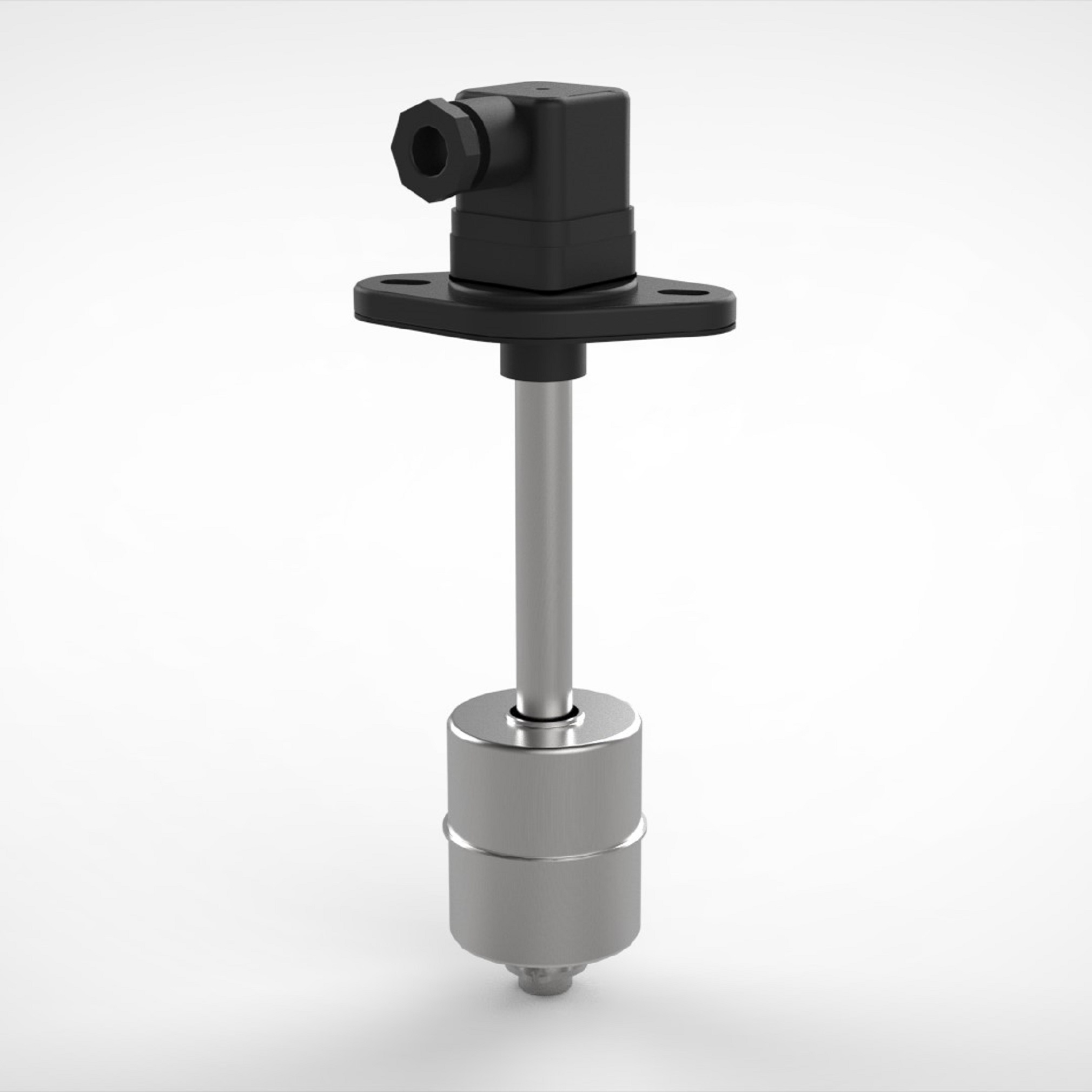

SSE 108 T
Float switch with temperature switch
The float switch version 108 offers precise level monitoring for many applications such as off-shore. Installation via flange Connection via plug connection.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
3-pin plug connection + PE (DIN EN 175301-803(DIN 43650)) |
|
Mounting: |
Oval flange 80x50mm, material PA |
|
Sliding tube: |
Ø12mm, stainless steel material, length selectable |
|
Float: |
stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 2x NO/NC/NO contact or 1x changeover contact |
|
Switching capacity: |
230VAC/1A/60VA |
| Temperature switch: | NC/NO contact/ NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 100°C, depending on material |
| Typical Industries: | Food industry, Offshore industry, Ship technology, Water treatment |
