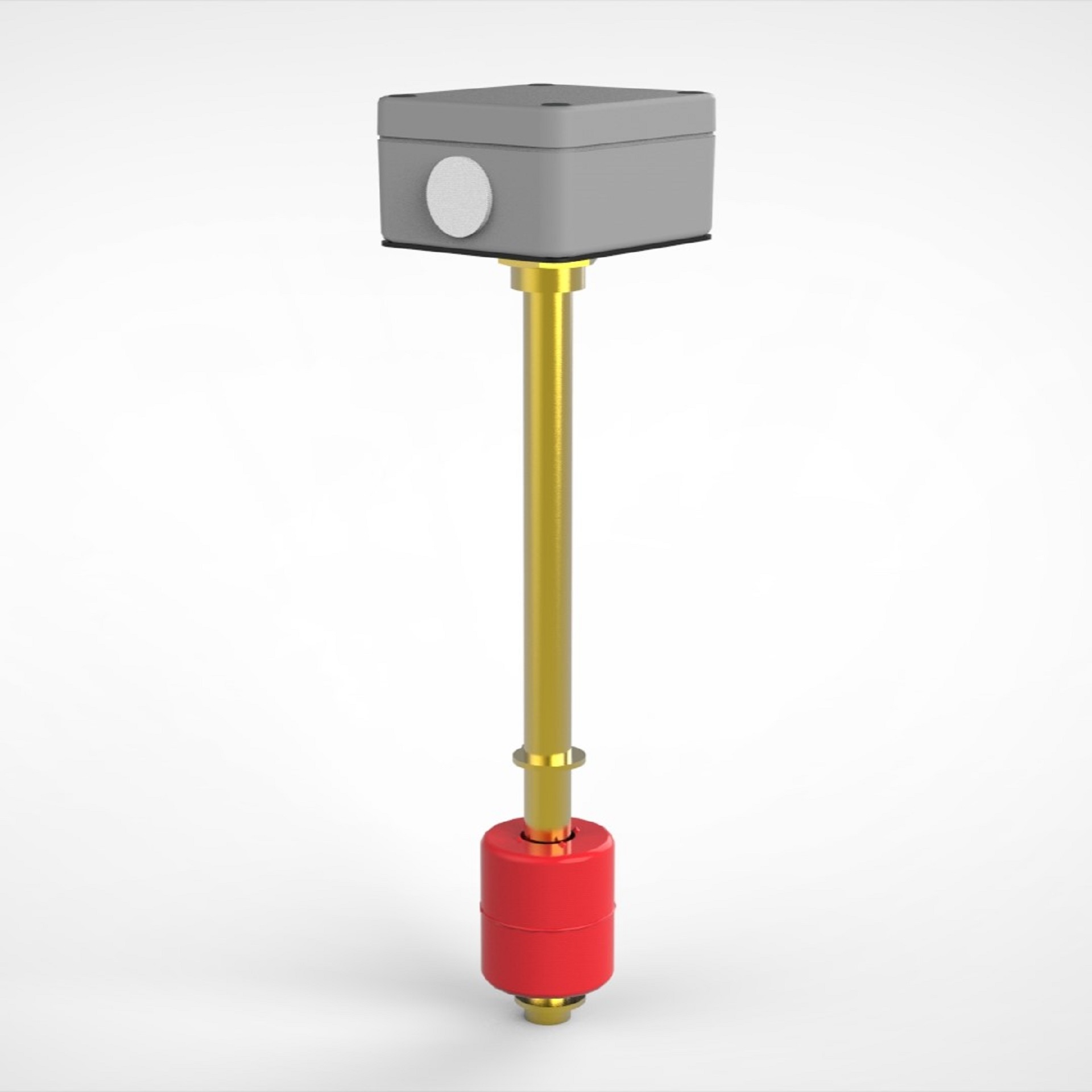

SSM 1 T
Float switch with temperature switch
The float switch version 1 offers precise level monitoring for many applications, e.g. in plant engineering. Installation via the housing base, terminal connection in the housing.
For exact technical details and type codes,
please refer to our data sheet:
Product details
|
Connection: |
Terminal connection in the housing |
|
Mounting: |
via housing base, material aluminum |
|
Sliding tube: |
Ø12mm, material brass, length selectable |
|
Float: |
Material stainless steel, PP; see data sheet for details |
|
Switching points: |
max. 3x NO/NC contact or changeover contact |
|
Switching capacity: |
230VAC/ 1A/ 60VA |
| Temperature switch: | NC/NO contact bi-metal; see data sheet for details |
| Operating temperature: | -20°C to 80°C |
| Typical Industries: | Machinery & Plant engineering, Hydraulic power units, Wind energy |
